Cast Iron Head Piston Compressors (Industrial)

Cast Iron Head Piston Compressors (Industrial)
Cast Iron Head Piston Compressors (Industrial) - Image 2
Cast Iron Head Piston Compressors (Industrial) - Image 3
Cast Iron Head Piston Compressors (Industrial) - Image 4
Cast Iron Head Piston Compressors (Industrial) - Image 5
Cast Iron Head Piston Compressors (Industrial) - Image 6
Cast Iron Head Piston Compressors (Industrial) - Image 7
Cast Iron Head Piston Compressors (Industrial) - Image 8

Cast Iron Head Piston Compressors (Industrial)

PUMA piston compressors combine high efficiency and durability. With stainless steel valve plates and a large oil sump, they ensure excellent lubrication, while the turbo system pulley design provides superior cooling performance. Their quiet, vibration-free, and low-maintenance structure guarantees long-lasting use. Manufactured with CE and ISO 9001 certified materials, our compressors deliver maximum performance with minimum energy consumption. With a 2-year warranty and extensive spare parts support, you can use them with confidence.

Kategoriler:
Etiket:
Puma Kompresör

Description

Cast Iron Head Piston Compressors (Industrial)

Better lubrication with a large oil sump
Stainless steel valve plates for high efficiency
Trouble-free operation and optimal performance in pistons at all times
Improved cooling with a turbo system pulley and protective cover design
Thermal protection switch to prevent motor burnout in 4-5, 5-7, 5 hp compressors
100% automatic testing and safe operation
Low maintenance requirements, quiet and vibration-free operation, high efficiency
CE and ISO 9001 certifications for materials used in production
CE quality certification for air tanks
Minimum energy consumption for maximum performance
2-year warranty and high-quality spare parts availability

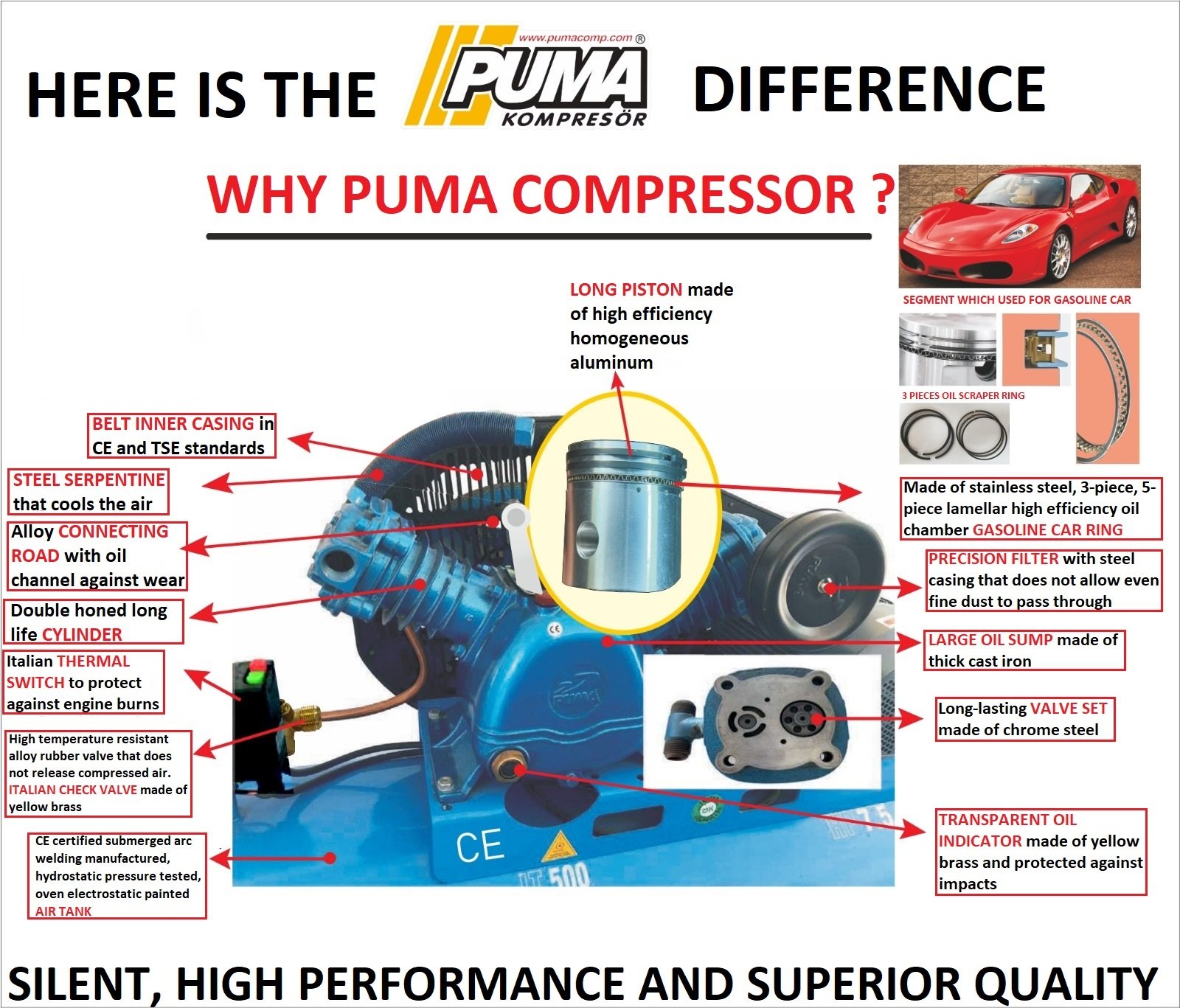

WHY PUMA COMPRESSOR

Brand

Puma Kompresör

Technical Specifications

Single Stage Piston Type Air Compressors (Industrial) – 8 Bar
ModelAir Displacement (Lt/Min.)Piston (Pcs)Working Pressure (Bar)Motor PowerAir Tank (Lt)Dimensions (mm)Weight (Kg)
KwHpWidthLengthHeight
PE30/200-2345281,52,020050014501100110
PE30/200-3M276282,23,020050014501100110
PE40/200-3420382,23,020050014501100113
PE40/300-4520383,04,030055016001180144

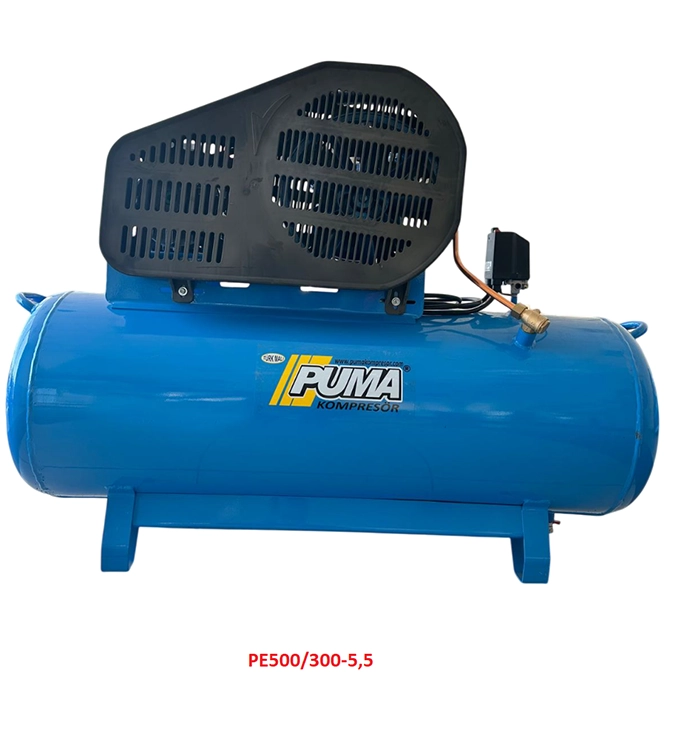

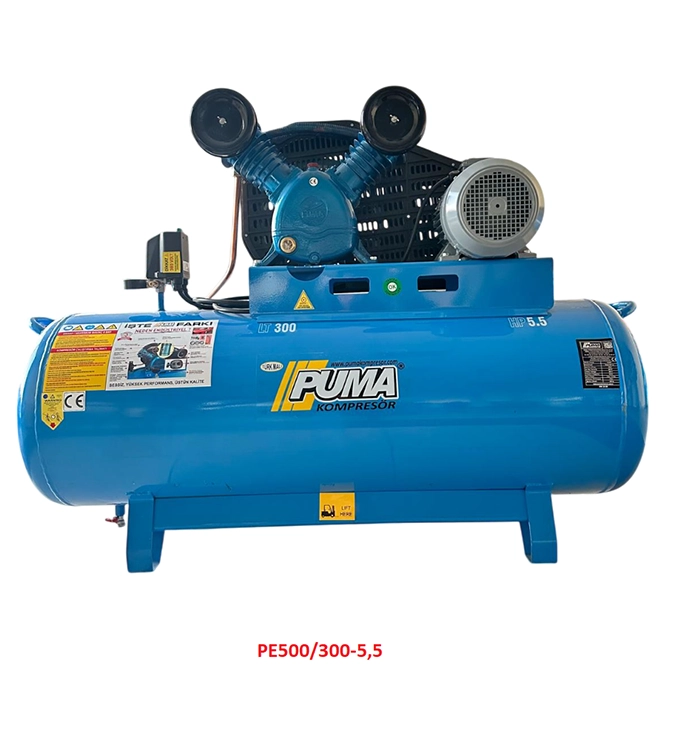

PE50/300-5,5650284,05,530055016001180187
PE50/500-5,5650284,05,550065019001400247
PE75/500-7,5985385,57,550065019001400260

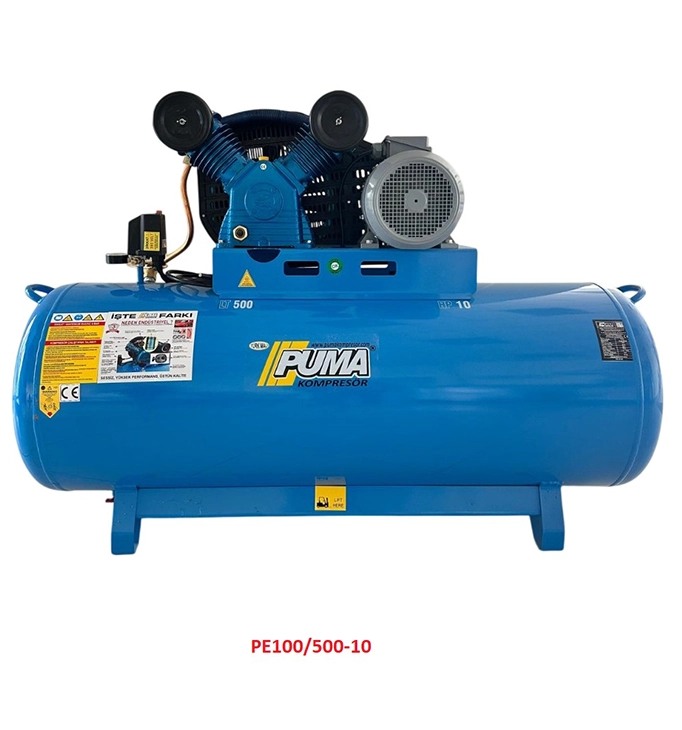

PE100/500-101200287,510,050065019001400284
Two Stage Piston Type Air Compressors (Industrial) – 12 Bar
ModelAir Displacement (Lt/Min.)Piston (Pcs)Working Pressure (Bar)Motor PowerAir Tank (Lt)Dimensions (mm)Weight (Kg)
KwHpWidthLengthHeight
PT36/200-32863122,23,020050014501100113

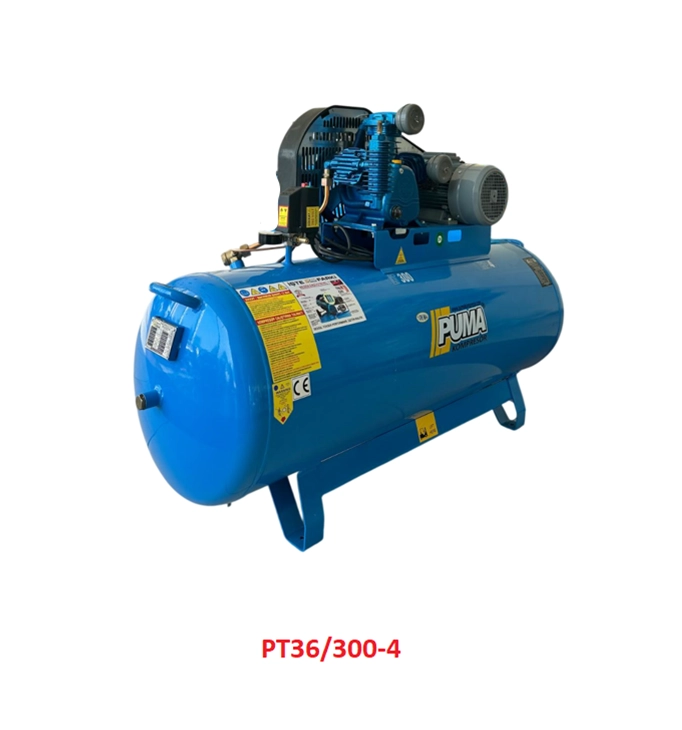

PT36/300-43453123,04,030055016001180144

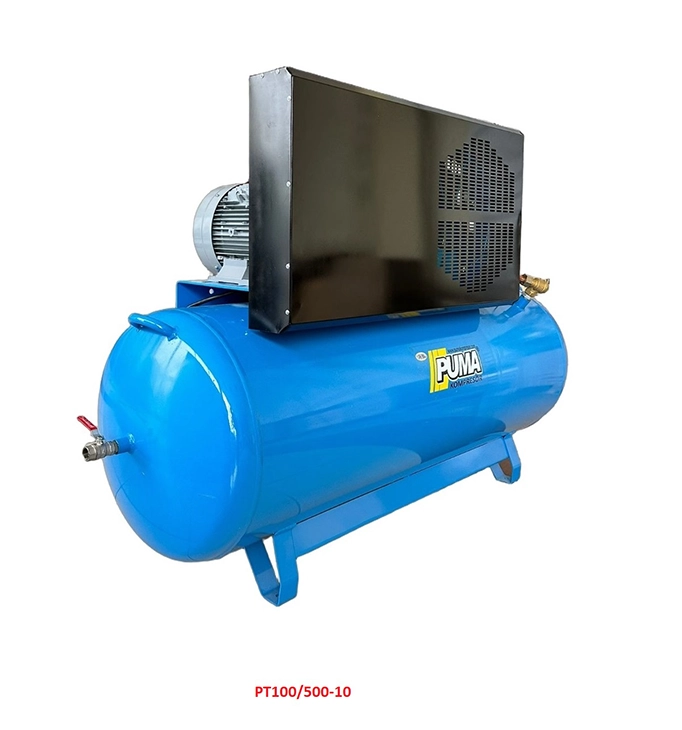

PT100/500-1010003127,510,050065019001400291

Video

Catalog

pdf 01VIEW PRODUCT CATALOG

Reviews

There are no reviews yet.

Be the first to review “Cast Iron Head Piston Compressors (Industrial)”

Your email address will not be published. Required fields are marked *

Related products

  • Direct Coupled Oil-Lubricated Compressors
    Direct Coupled Oil-Lubricated Compressors
  • Gasoline and Diesel Aluminum Compressors
    Gasoline and Diesel Aluminum Compressors
  • Belt-Driven Oil-Lubricated Compressors
    Belt-Driven Oil-Lubricated Compressors
    ,
  • Aluminum Head Piston Compressors (Professional)
    Aluminum Head Piston Compressors (Professional)

The operating principle of production machines in many different industries today is based on pneumatic systems. The first and most important requirement for the operation of such automation systems is clean and dry compressed air. Since compressed air is produced by compressors, compressors are the heart of an industrial facility, and thus of the industry.
